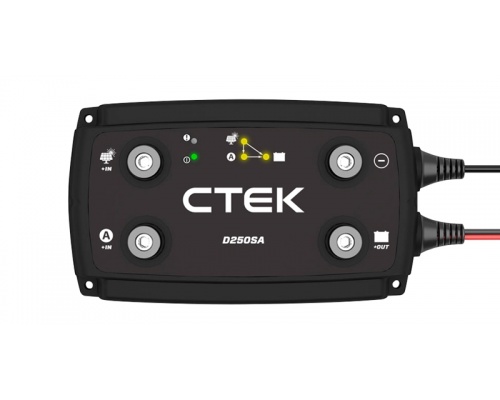

D250SA

d250sa-1
d250sa-1d250sa-2
THIS MODEL IS NOW END OF LINE AND HAS BEEN REPLACED BY THE D250SE Euro Performance Upgraded The latest from CTEK the D250SA leverages the good foundation of the D250S Dual but raises the stakes again by including an ignition feed to only take energy from the start battery when the vehicle is runni ...Read more
  • Description
  • Specifications
  • Comment
  • Post a comment

THIS MODEL IS NOW END OF LINE AND HAS BEEN REPLACED BY THE D250SE

Euro Performance Upgraded

The latest from CTEK the D250SA leverages the good foundation of the D250S Dual but raises the stakes again by including an ignition feed to only take energy from the start battery when the vehicle is running. An additional feature allows the setting of bulk charging voltages at either 14.4V or 14.7V. A wider input voltage range on the alternator side for Euro 5+ engine for ECU controlled systems.

A wider input voltage range on the alternator input side for Euro 5+ engine for ECU controlled systems allows for forced charging of the service batteries to optimise the engine output and generate charging power.

MPPT Solar input, alternator input with service battery charging from the solar or engine with a preference on the suns free energy. Not to mention the ability to add the SmartPass or SmartPass 120 for an additional 80A or 120A charging output.

  • 20A fully automatic temperature compensated charging for batteries from 40-300Ah while you’re on the move
  • Dual input (solar and alternator in parallel)
  • Smart alternator compatible
  • Battery separation replacing diodes and VSR relays
  • Solar panel regulator with Maximum Power Point Tracking (MPPT)
  • Selectable AGM option – 14.4V or 14.7V
  • Maximised charging for better battery life and performance
  • Temperature sensor to compensate for hot or cold conditions
  • Compatible with SMARTPASS 120 for the ultimate 140A power management solution

Technical information
Ambient temperature; -20˚C to +50˚C (- 4°F to +122°F)
Positioning; Permanent installation/onboard
Warranty; 2 years
Input; 11.5-23V, 25A
Output; 14.4/14.7V, 20A max
Back current drain*; Corresponding to less than 1Ah/month
Battery types; 12V:, WET, MF, Ca/Ca, AGM, EFB, GEL
Battery capacity; 40-300Ah
Insulation class; IP65 (splash and dustproof)
Ripple**; Less than 4%
Model Number; 40-186

Width: 110 mm
Length: 192 mm
Height: 65 mm
