Battery Monitor 200A

nasa_marine-monitor_1837746370
Compact battery monitor, just 124 x 62mm x 23mm! Caravans, mobile homes, RV’s, small boats and renewable power installations can all benefit from the BM-2 Compact. It is able to monitor the performance of any 12 Volt lead acid battery system with a capacity up to 600 AmpHours. The BM-2 Compact is ...Read more
  • Description
  • Specifications

Compact battery monitor, just 124 x 62mm x 23mm!

Caravans, mobile homes, RV’s, small boats and renewable power installations can all benefit from the BM-2 Compact. It is able to monitor the performance of any 12 Volt lead acid battery system with a capacity up to 600 AmpHours. The BM-2 Compact is supplied with a precision 200 Amp shunt and prefabricated cables to enable simple DIY installation.

Based on the highly successful BM-2 marine battery monitor, the BM-2 Compact is specially designed for applications where space is at a premium.

The unit continually monitors the voltage, the current (charge or discharge) and calculates the state of charge together with the time remaining to charge or discharge the battery.

This information can lead to more efficient use of the battery enhancing its life and reducing the risk of failure.

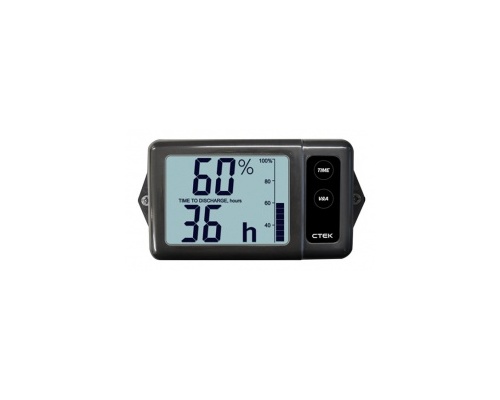

The operation is very simple. One screen displays the voltage, current (charge or discharge) and a bar graph showing the remaining capacity. A flashing alarm is also included to warn if the capacity is getting too low. A second screen shows the remaining time available at the current charge/discharge rate together with the remaining capacity in both analog and digital format.

The BM-2 Compact consumes a miserly 1.5mA!

  • Supply current 1.5 milliamp
  • Supply voltage 8 - 16 Volts DC
  • Battery capacities 5 - 999AMP Hour
  • Load current 199 AMPS Maximum
  • Charge current 199 AMPS Maximum
  • Shunt Standard 50 millivolt @ 200 AMP
Width: 62 mm
Length: 124 mm
Height: 23 mm

Related products

Results 1 - 1 of 1

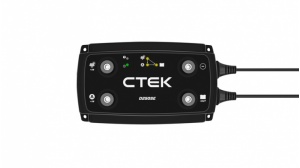

NZD639.00 each D250SE
