Special Offer

NZD230.00 each

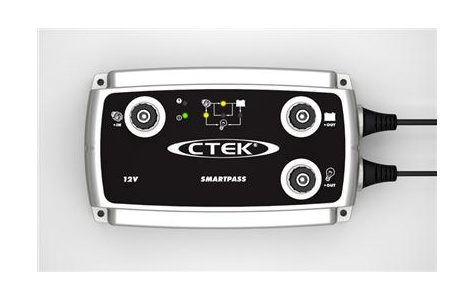

SmartPass

CLEARANCE SPECIAL PRICE

More Power while you drive

Fully automated control

SMARTPASS controls and optimises energy and has a built in low voltage disconnect to make sure critical equipment such as radio, emergency lights and navigation systems always function. It’s suitable for boats, service vehicles, camper vans, caravans, RVs and heavy vehicles.

SMARTPASS is a fully automatic power management system for controlling and optimising energy produced by alternators or conventional AC/DC chargers, which is then distributed to battery banks and consumers. It can handle up to 80A for batteries between 28-800Ah and is suitable for all types of 12V battery. It will only charge the house batteries when the DC circuit is being powered from a charging source so you never have to worry about a flat starting battery. When used with the D250S DUAL, SMARTPASS provides optimal charging through CTEK’s unique staged charging cycle to protect your battery.

  • Battery separation eliminates diodes and VSR relays
  • Delivers 80A for quick recharge of batteries 28-500Ah
  • Compatible with DUAL D250S and D250SA and delivers up to 100A charge when matched with either of these two units.
  • Prioritizing critical consumers and supplies consumers directly from the alternator
  • Fully automatic
  • Simple to install and use
  • Maximizes battery life
  • Reduced charging times and costs
  • Separates consumers from service batteries for more effective charging
  • Temperature protection for service batteries
  • Safe spark free operation
  • Short circuit proof





NZD335.00 each

MXS 10

Powerful professional charging for workshops

The ultimate charger

The MXS 10 gives you state of the art technology and is ideal for professional use in workshops for caravan, RV, boat and car batteries with remote temp. sensor and power supply mode.

The MXS 10 is a fully automatic 8-step charger that delivers 10A to all types of 12V batteries from 20-200Ah and is also suitable for maintenance charging up to 300Ah. It includes battery diagnosis to establish whether your battery can receive and retain a charge, a Recond mode for restoring and reconditioning sulphated and deeply discharged batteries, a winter program for charging in cold weather which is also the AGM option which maximises the performance life of most Stop/Start batteries. The MXS 10 also has a temperature sensor for optimised charging and it can even be used as a power supply source for 12V equipment.

  • Fully automatic ‘connect and forget’ 8 step charging
  • Charges batteries from 20-200Ah
  • Temperature sensor, AGM and Recond programs
  • Power supply for 12V equipment

Technical information
Ambient temperature; -20˚C to +50˚C
Positioning; Portable
Warranty; 2 years
Input; 220–240VAC, 50–60Hz, 1.4A max
Output; 14.4V/14.7V/15.8V/13.6V, 10A max
Start voltage; 2.0V
Back current drain*; Corresponding to less than 1Ah/month
Battery types; 12V:, WET, MF, Ca/Ca, AGM, GEL
Battery capacity; 20–300Ah
Insulation class; IP65 (splash and dust proof)
Model Number; 56-823
