Professional 24V battery charging

The ideal 24V solution

The MXT 14 is designed for batteries that are put under a lot of strain, making it ideal for commercial vehicles, buses, trucks, access equipment and workshops.

The MXT 14 professional 8 step 24V battery charger delivers 14A to 24V batteries from 28-300Ah and is suitable for maintenance charging up to 500Ah. Its features include battery diagnosis to establish whether the battery can receive and retain a charge, a Recond mode for restoring and reconditioning stratified and deeply discharged batteries, and a built in temperature sensor for optimised charging regardless of weather conditions. The MXT 14 also has a ‘Supply’ mode so it can be used as a 24V power source.

  • Charges 24V batteries from 28-300Ah
  • Recond program
  • Temperature sensor to compensate for cold conditions
  • Can be used as a 24V power source
  • Fully automatic ‘connect and forget’ 8 step charging
  • Patented maintenance charging up to 500Ah

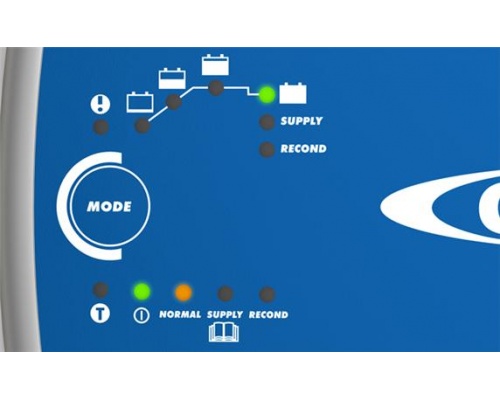

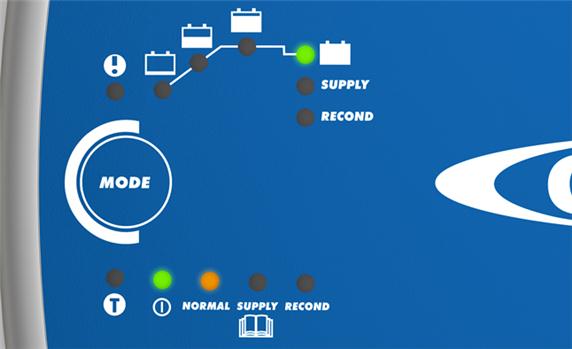

  • Easy to read LED display
  • Safe spark free operation
  • Reverse polarity protected
  • Short circuit proof

Technical information
Ambient temperature; -20˚C to +50˚C
Positioning; Portable, Wall mounting (with special kit)
Warranty; 2 years
Input; 220–240VAC, 50–60Hz, 2.9A max
Output; 28.8V/31.6V/27.2V, 14A max
Start voltage; 2.0V
Back current drain*; Corresponding to less than 1Ah/month
Battery types; 24V:, WET, MF, Ca/Ca, AGM, GEL
Battery capacity; 28–500Ah
Insulation class; IP44 (outdoor use)
Ripple**; Less than 4%
Model Number; 56-767
