Description

Extend the range of your CTEK charger

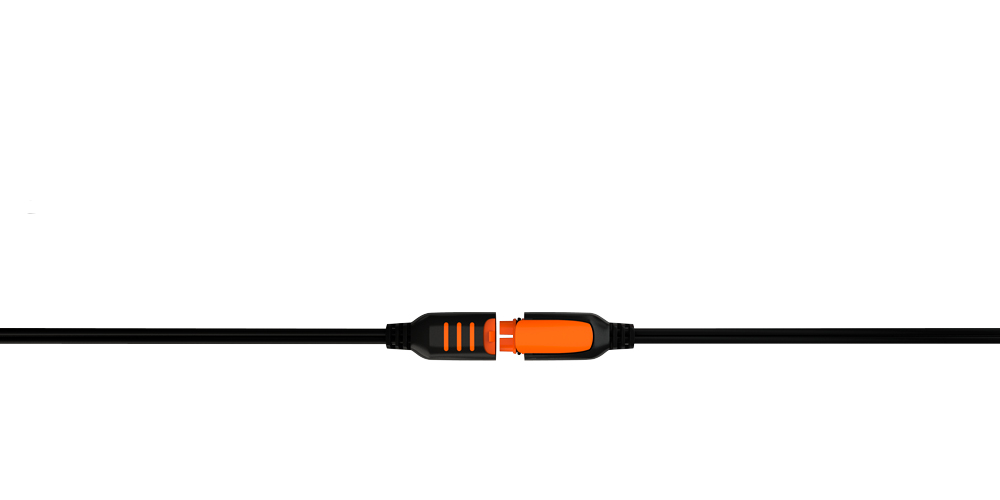

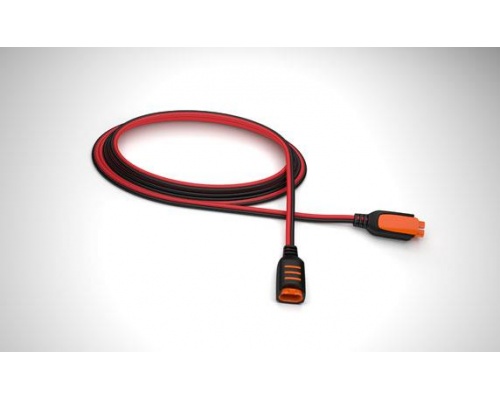

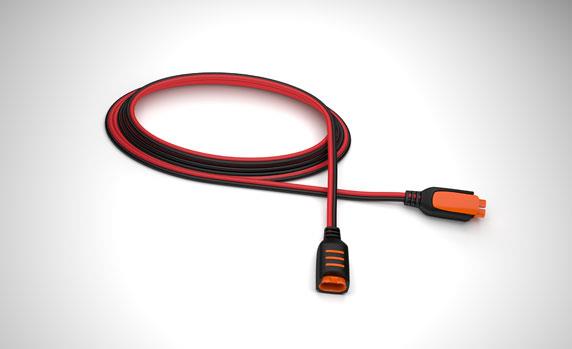

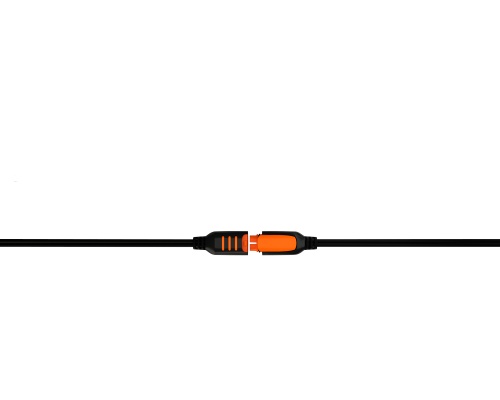

The CONNECT – Extension Cable is the convenient and secure solution if your CTEK charger needs to be further away from the battery or the vehicle. Simply connect the 2.5m cable to your charger’s accessory plug and attach the other end to the sockets on your accessories.

2.5m cable length to give your charger more range.
Allows you to wall mount the charger but still reach the vehicle.
CTEK CONNECT system for a secure connection.
Suitable for use with all CTEK chargers up to 10A using the CONNECT system.

Technical information
Warranty; 2 years
Insulation class; IP65 (splash and dust proof)
Model Number; 40-134

Related products

About Us

About CTEK
New additions
Want to work with us
Distributed by Element 82

Popular Tags

Contact Us

+64 9 476 4171
Element 82 Limited
235G Bush Road, Rosedale
Auckland, New Zealand
PO Box 300313, Albany, Auckland 0752
Element 82 Website

CS Free

NZD499.00 each CS Free

CTEK CS FREE is the world’s first truly portable battery charger and maintainer with Adaptive Boost technology.

You can charge and maintain any 12V lead-acid or lithium vehicle battery anywhere without being connected to a power outlet. And if your battery’s flat, CS FREE’s revolutionary Adaptive Boost technology will get you going within 15 minutes.

Portable charging and maintaining you can take anywhere without being tied to a power outlet
• Internal battery lasts up to a year when fully charged
• Adaptive Boost, to safely get you going from a flat battery within 15 minutes
• Can be charged up and powered by solar or 12V battery for longer-term maintenance charging
• No modes to select – just turn it on, connect and the CS FREE will do the rest
• Countdown function shows you how long there is left before your battery is fully charged
• USB-C and USB-A outputs for charging tech like laptops, smartphones & tablets
• New ergonomic design with a tough and durable case
• 2 year ‘peace of mind’ warranty

Additional Accessories available include:

Alligator clips for the DC input so you can use a battery to charge another battery. (DC to DC charger)
Solar Panel (60W) to recharge the onboard battery or pass-through to charge anything connected to the CS Free's USB-A, USB-C or Alligator Clips.
Cig Plug DC input so you can charge your CS Free from a cig-plug adaptor. This allows you to recharge the internal battery and charge/power the outputs.

TECHNICAL DATA
INPUT USB-C	5 VDC – 25 VDC, 3 ADC/60 W max
OUTPUT	12 V, 20 A/240 W max
START VOLTAGE	3.0 V
AMBIENT OPERATING TEMPERATURE	-20 ˚C to +50 ˚C (- 4 °F to +122 °F)
AMBIENT STORAGE TEMPERATURE	-20 ˚C to +45 ˚C (- 4 °F to +113 °F)
BATTERY CHEMISTRY	Lead acid, Lithium
BATTERY TYPES 12 V	WET, MF, Ca/Ca, AGM, EFB, GEL, LiFePO4
BATTERY CAPACITY	10-130 Ah
DEGREE OF PROTECTION	IP54
WARRANTY	2 years
NET WEIGHT (UNIT WITH CABLES)	1.4 kg
DIMENSIONS	(L x W x H) 248 x 98 x 78 mm
USB-A OUTPUT	5 VDC, 2.4 ADC/12 W max
USB-C OUTPUT	5 VDC, 9 VDC, 12 VDC, 15 VDC, 20 VDC, 3 ADC/60 W max

MAINS ADAPTER
INPUT	100 VAC – 240 VAC, 50 Hz – 60 Hz, 60 W max
OUTPUT USB-C	5 VDC – 20 VDC, 3 ADC, 60 W max
CABLE LENGTH	1 m
CABLE TYPE	USB-C

INTERNAL BATTERY
CAPACITY	66 Wh
CELL CHEMISTRY	Polymer Lithium-Ion
CELL TYPE	Pouch Cell
DISCHARGE TEMPERATURE	-20 ˚C to +50 ˚C (- 4 °F to +122 °F)
CHARGE TEMPERATURE	0˚C to +45˚C (32˚F to 113˚F)
SHELF LIFE	1 year
LIFE SPAN	300 cycles, 80%
