Indicator Panel 3.3M

comfort_indicator_panel_m8_15m_0
comfort_indicator_panel_m8_15m_0indicator-panel-cutout_508959549

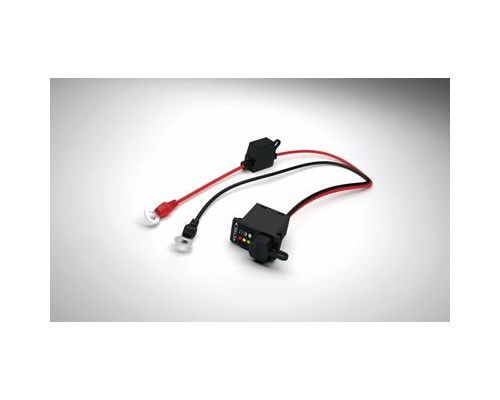

Peace of mind in a Panel With 3.3 metres of cable, you can further extend access to the battery. The panel can be flush mounted allowing view of the L.E.D. indicators which indicate the batteries voltage. Above 12.65 (Green), between 12.65V and 12.41V (Orange) or below 12.4V being (Red). With M8 e ...Read more
NZD49.00 each


  • Description

Peace of mind in a Panel

With 3.3 metres of cable, you can further extend access to the battery. The panel can be flush mounted allowing view of the L.E.D. indicators which indicate the batteries voltage. Above 12.65 (Green), between 12.65V and 12.41V (Orange) or below 12.4V being (Red).

With M8 eyelets you can easily connect onto marine batteries with additional posts or on large AGM batteries with bolt in posts.

Also available in 1.5 metre cable.

  • Comes in two cable lengths with M8 8.4mm eyelet terminals
    150cm cable length (part no. 56-380)
    330cm cable length (part no. 56-531)
  • Size of connector/indicator: 5mm x 21mm x 50mm
  • 15A fuse

Technical information
Warranty; 2 years
Model Number; 56-531
