PRO25SE EU

pro25se_cables_hanger
pro25se_cables_hangerpro25s-2pro25se_01pro25se_02pro25se_wallhanger
Highly efficient 25A battery charger & power supply For everyday professional workshop use The PRO25SE with wallhanger is an innovative, versatile, and highly efficient 25A battery charger and power supply, designed around the needs of the automotive professional. Combining power & advance ...Read more
NZD1,327.10 each


  • Description
  • Specifications

Highly efficient 25A battery charger & power supply

For everyday professional workshop use

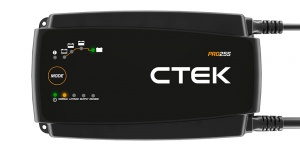

The PRO25SE with wallhanger is an innovative, versatile, and highly efficient 25A battery charger and power supply, designed around the needs of the automotive professional. Combining power & advanced technology with safety, portability, and flexibility to work with any 12V vehicle battery including Lithium-Ion (LiFePO4), the PRO25SE is the perfect solution to professional battery charging, in the workshop where technicians need a portable hand-held solution.

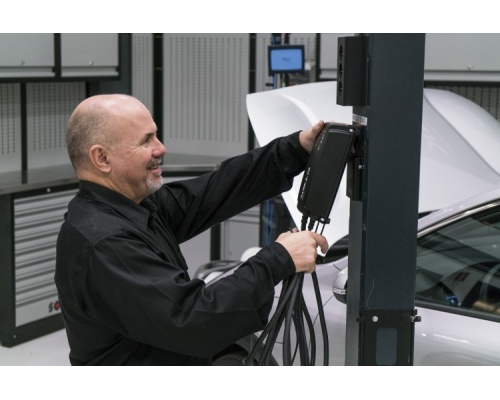

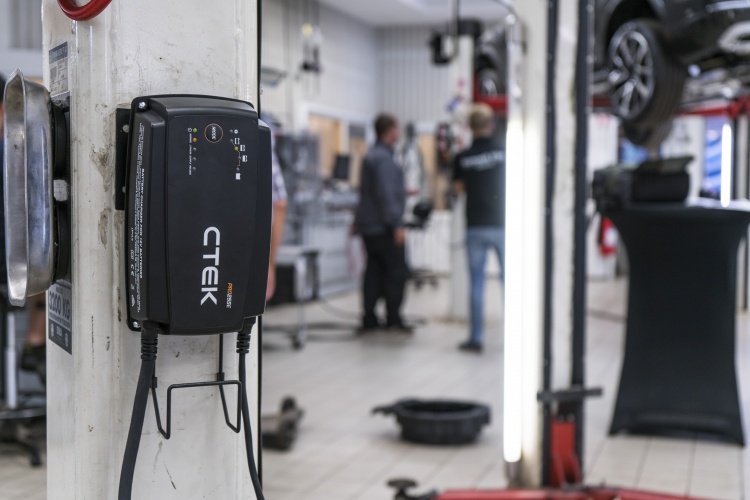

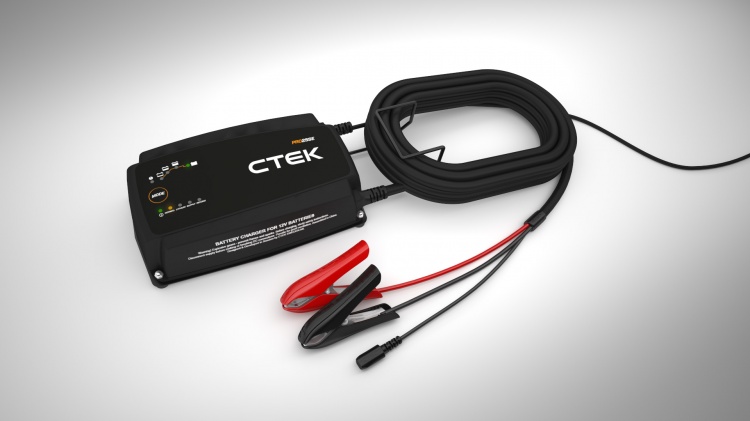

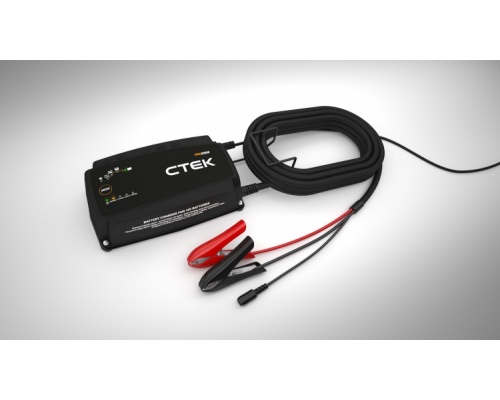

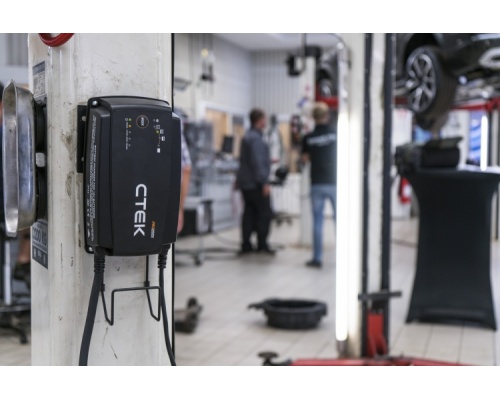

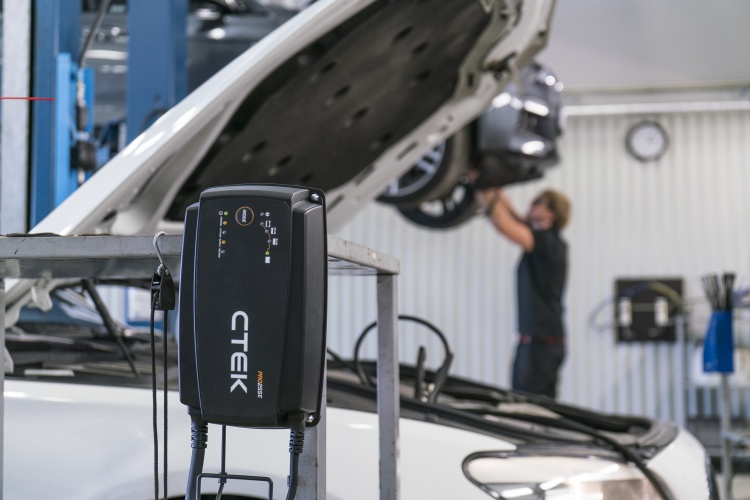

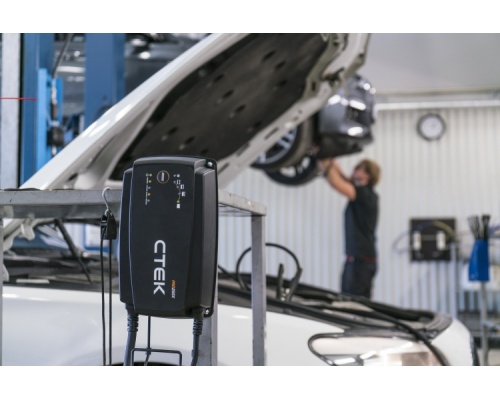

Advanced technology will ensure that a safe, fast charge is delivered to exactly meet the needs of the individual battery. The PRO25SE has a dedicated lead-acid battery reconditioning programme to restore battery life & recondition flat batteries. SUPPLY mode will support the battery during diagnostic or fault finding work. It has low voltage & current ripple, so it’s safe for the battery & the vehicle’s delicate electronic systems. Fully automatic & easy to use, it’s also very simple to connect, spark proof and reverse-polarity protected to protect the user & also the battery. The PRO25SE is designed to ensure easy handling with its integrated 6 metre cable leads. Whilst it’s lightweight & portable, the rugged, impact-resistant casing means it can also handle the toughest workshop environment and with the wallhanger be mounted on a wall, hoist or vehicles side windows to work with any application or demand of the situation.

  • Dedicated Lithium-Ion (LiFeP04) mode
  • Compatible with batteries from 40Ah to 500Ah (30Ah to 450Ah LiFePO4).
  • SUPPLY mode to support the battery during diagnostic or fault-finding work.
  • Fully automatic, easy to use and simple to connect
  • Spark proof
  • Reverse-polarity protected.
  • Integrated safety features, so it’s safe for the battery & the vehicle.
  • Built-in temperature sensor to achieve maximum charge levels
  • Dedicated lead-acid reconditioning programme to restore battery life and recondition flat batteries.
  • Lightweight & highly portable
  • Tough & robust

Technical information
Ambient temperature; -20˚C to +50˚C

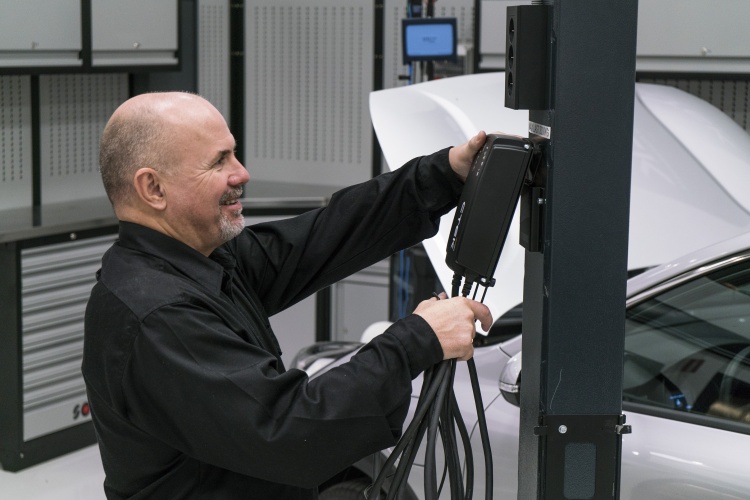

Positioning; Portable, Wall mounting (with special kit)
Warranty; 2 years
Input; 220–240VAC, 50–60Hz, 2.9A max
Output; 14.4V/15.8V/13.6V, 25A max, lead-acid battery types. 13.8V/14.4V/13.3V, 25A max, LiFePO4.
Start voltage; 2.0V
Back current drain*; Corresponding to less than 1Ah/month
Battery types; 12V:, WET, MF, Ca/Ca, AGM, EFB, GEL, LiFePO4
Battery capacity; 40–400Ah, lead-acid battery types. 30–450Ah, LiFePO4
Battery capacity (maintenance); 500Ah
Charge cables length; 6000 mm (DC cable)
Mains cable length; 1900 mm (AC cable)
Net weight (unit with cables); 1.8 kg
Gross weight (unit in box); 2.2 kg
Insulation class; IP44 (outdoor use)
Ripple**; Less than 4%
Model Number; 40-200

Weight: 1.8 kg
Width: 130 mm
Length: 235 mm
Height: 65 mm
